Engineering drawing

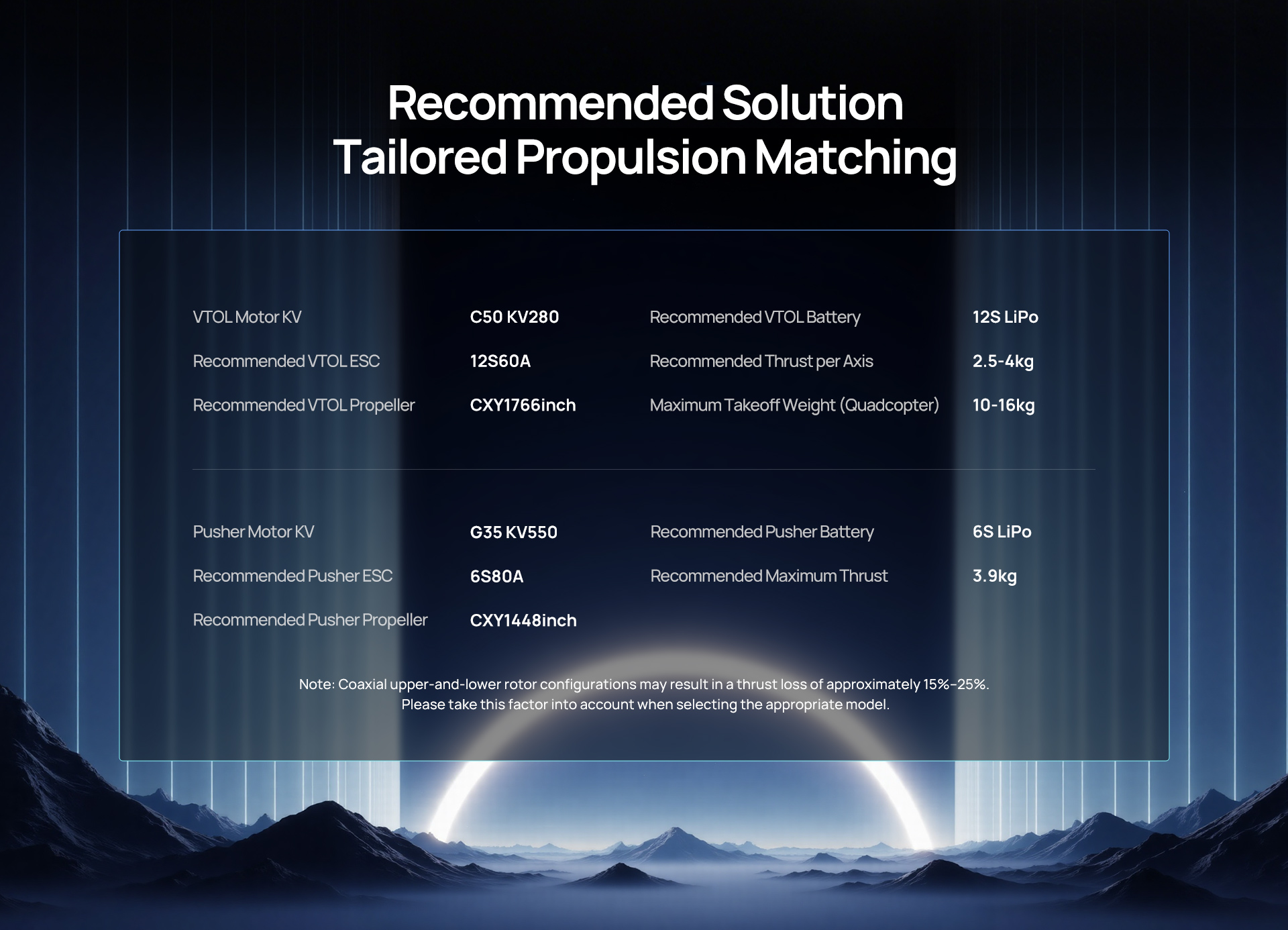

VTOL power system recommendation
| Recommended components | Takeoff weight reference | ||
|---|---|---|---|
| Recommended battery | 12S LiPo | Recommended thrust per axis | 2.5-4kg |
| MotorKV | C5 KV280 | Maximum quadcopter takeoff weight | 10-16kg |
| Recommended ESC | 60A12S | Maximum hexacopter/X8 takeoff weight | 15-24kg |
| Recommended propeller | CXY1766inch | Maximum octocopter takeoff weight | 20-32kg |
Technical specifications
| Motor technical specifications | |
|---|---|

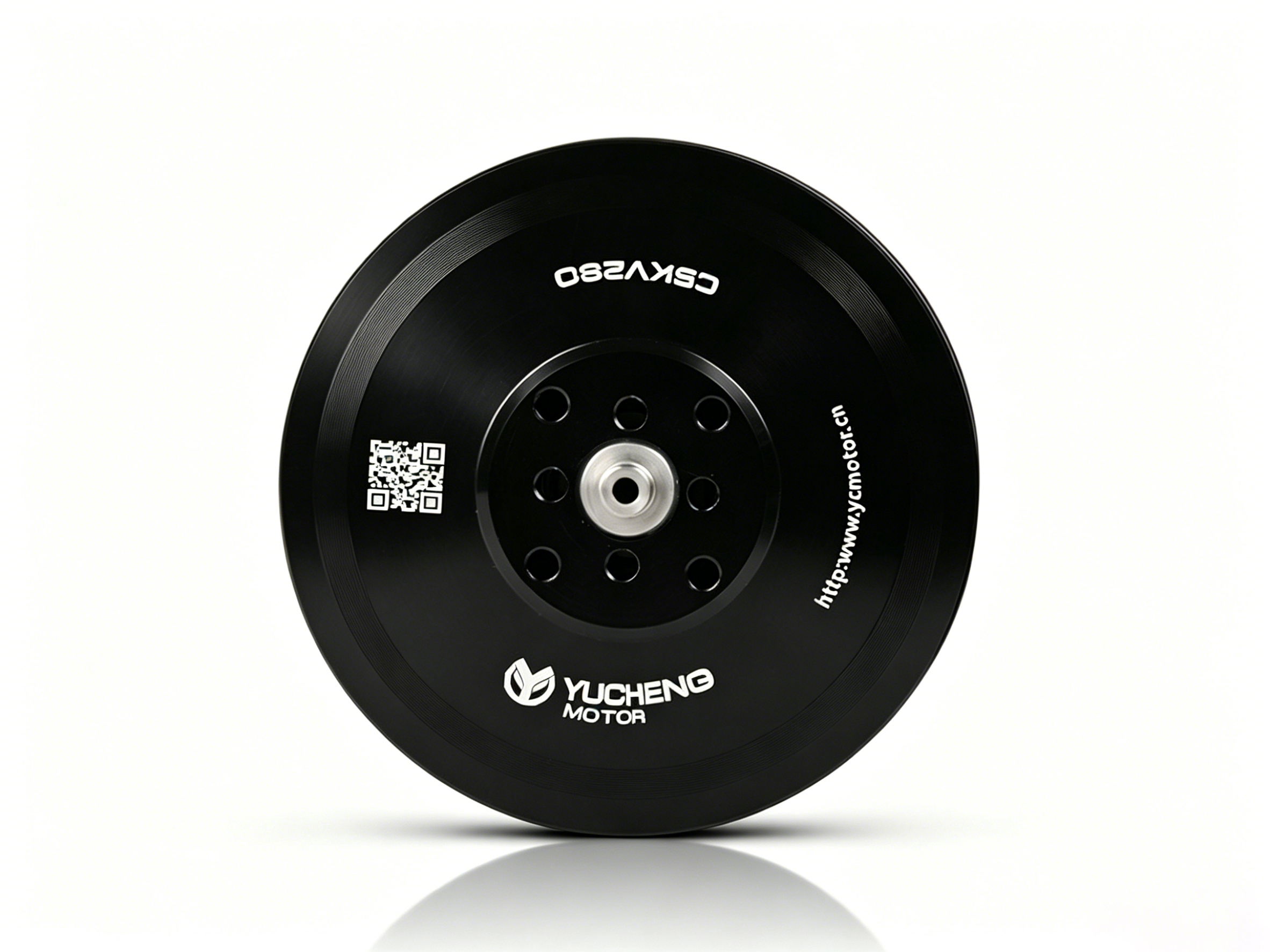

| Motor model | C5 |
| KVRating | KV280 |
| Slot/pole count | 24N28P |
| No-load current (10V) | 1.8A |
| Phase-to-phase resistance (Range) | 53-55mΩ |
| Voltage range (Range) | 45-48V |
| Maximum current (48V) | 58A |
| Maximum thrust (48V) | 9.5kg |
| Maximum power (48V) | 2750W |
| Wire gauge/Wire color/Wire length | 16AWG, Black, 600mm |
| Rotor dynamic balance | ≤10mg |
| Ingress protection rating | IPX6 |
| Motor weight including leads | 262g |
| Operating ambient temperature | -30℃–50℃ |
Load data analysis
Load test data
Motor C5 KV280 + Propeller CXY1766inch + ESC 60A BLDC
| Operating voltage(V) | Throttle setting(%) | Current(A) | Torque(N·m) | Input power(W) | Output power(W) | Speed(RPM) | Thrust(gf) | Thrust efficiency(g/W) | Motor temperature(°C) |
|---|---|---|---|---|---|---|---|---|---|
| 48 | 30 | 3.27 | 0.27 | 157 | 107 | 3752 | 1229 | 7.84 | / |
| 35 | 4.57 | 0.34 | 219 | 147 | 4190 | 1566 | 7.15 |
Package contents
Frequently asked questions
-
1. What is the product warranty period?
This product is covered by a one-year warranty from the date of purchase, Defects not caused by misuse are eligible for free repair or replacement parts.
-
2. How do I install the product?
Before installation, refer to the installation guide supplied with the product, Follow the steps in the guide.Contact after-sales support for an installation video if needed.
-
3. Does the product support updates?
Yes, the product supports firmware updates.Download the latest version from the official website, Follow the update instructions.
-
4. How can I obtain after-sales support?
You can use the official website“Contact Us”page to submit a support ticket, or call the after-sales hotline for assistance.
-
5. What are the operating environment requirements?
Recommended operating temperature-10°C~50°C, Humidity20%-80%relative humidity, Avoid high-temperature, high-humidity and highly corrosive environments.
