Engineering drawing
VTOL hybrid-wing power system recommendation
| VTOL power system recommendation | |||
|---|---|---|---|
| VTOL motorKV | C64 KV210 | Recommended VTOL battery | 12S LiPo |
| Recommended VTOL ESC | C80A 14S FOC | Recommended thrust per axis | 4-5kg |
| Recommended VTOL propeller | CXY2266inch | Maximum quadcopter takeoff weight | 16-20kg |
| Pusher motorKV | G53 KV230 | Recommended pusher battery | 12S LiPo |
| Recommended pusher ESC | G120A 14S BLDC | Recommended maximum thrust | 12kg |
| Recommended pusher propeller | GXY2018inch | ||
Motor technical specifications
| Motor technical specifications | |
|---|---|

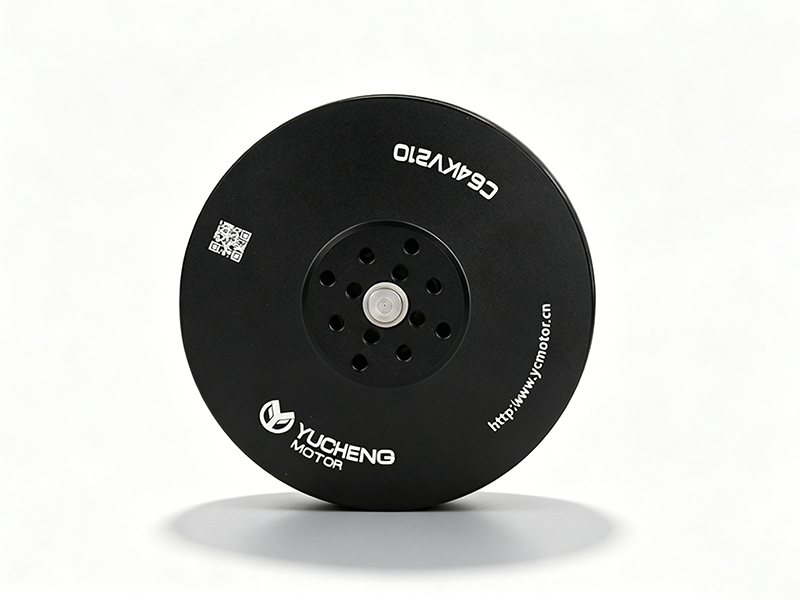

| Motor model | C64 |
| KVRating | KV210 |
| Slot/pole count | 24N28P |
| No-load current (10V) | 1.5A |
| Phase-to-phase resistance (Range) | 45-49mΩ |
| Voltage range (Range) | 45-48V |
| Maximum current (48V) | 57.4A |
| Maximum thrust (48V) | 11.7kg |
| Maximum power (48V) | 2728W |
| Wire gauge, Wire color, Wire length | Enameled lead wire, Wire length90mm |
| Rotor dynamic balance | ≤10mg |
| Ingress protection rating | IPX6 |
| Motor weight including leads | 305g |
| Operating ambient temperature | -30℃–55℃ |
ESC technical specifications
| ESC technical specifications | |||
|---|---|---|---|
| ESC model | 60A 12S Square wave | Overall dimensions | 55*28*10mm |
| Weight | None | Ingress protection rating | None |
| Operating voltage | 5-12S | Standby power consumption | 6.54mA |
| Rated current(well-ventilated) | 60A | Peak current(well-ventilated) | 80A |
| Throttle signal | PWM | Communication protocol | PWM |
| Throttle response time | ms | Throttle signal frequency (MAX) | 490Hz |
| Throttle range | 1040μs-1960μs | Logic-level signal | 3.3V |
| Throttle range calibration | Calibratable | Isolation method | Non-isolated |
| Firmware update | None | Fault logging | None |
| Fixed-pitch propeller | No | BEC | None |
| Operating ambient temperature | -10℃-85℃ | Protection temperature(Internal temperature) | 110° |
| Power cable | 14AWGSilicone wire, 180mm, No connector | Three-phase motor leads | 14AWGSilicone wire, 100mm, No connector (Positive, red, Negative, black) |
| Signal cable | PVCShielded cable30core, 400mm, ConnectorJR 3Pin | Feedback cable | None |
Load data analysis
Load test data
Motor C64 KV210 + Propeller CXY2266inch + ESC 60A 12S Square wave
| Operating voltage (V) | Throttle setting (%) | Current (A) | Torque (N·m) | Input power (W) | Output power (W) | Speed (RPM) | Thrust (gf) | Thrust efficiency (g/W) |
|---|---|---|---|---|---|---|---|---|
| 48 | 30 | 3.48 | 0.388 | 166.6 | 110.6 | 2723 | 1589 | 9.5 |
| 35 | 4.46 | 0.479 | 213.2 | 152.0 | 3029 | 1978 | 9.3 | |
| 40 | 6.04 | 0.594 | 289.1 | 210.6 | 3385 | 2473 | 8.6 | |
| 45 | 7.79 | 0.702 | 372.8 | 274.3 | 3732 | 2954 | 7.9 | |
| 50 | 9.92 | 0.852 | 474.3 | 365.6 | 4098 | 3597 | 7.6 | |
| 55 | 12.75 | 1.033 | 610.0 | 481.9 | 4455 | 4285 | 7.0 | |
| 60 | 16.17 | 1.208 | 773.0 | 608.3 | 4808 | 5016 | 6.5 | |
| 65 | 19.24 | 1.349 | 919.1 | 725.7 | 5137 | 5655 | 6.2 | |
| 70 | 23.04 | 1.5 | 1100.3 | 851.9 | 5424 | 6411 | 5.8 | |
| 75 | 27.27 | 1.737 | 1301.8 | 1039.5 | 5715 | 7187 | 5.5 | |
| 80 | 31.72 | 1.928 | 1512.7 | 1215.4 | 6020 | 8070 | 5.3 | |
| 85 | 37.17 | 2.142 | 1770.7 | 1418.9 | 6326 | 8906 | 5.0 | |
| 90 | 42.86 | 2.333 | 2040.5 | 1617.2 | 6620 | 9674 | 4.7 | |
| 95 | 49.26 | 2.538 | 2343.5 | 1839.9 | 6923 | 10527 | 4.5 | |
| 100 | 57.40 | 2.868 | 2728.7 | 2142.9 | 7135 | 11797 | 4.3 |
Package contents
Propeller cover plate-1PCS
Socket head cap screw-M3*10-4PCS
Socket head cap screw-M3*12-2PCS
Banana connector-3.5mm/Bullet connector/Male connector-3PCS
Heat-shrink tubing-φ4.5*40-3PCS
Socket head cap screw-M3*10-4PCS
Socket head cap screw-M3*12-2PCS
Banana connector-3.5mm/Bullet connector/Male connector-3PCS
Heat-shrink tubing-φ4.5*40-3PCS
Frequently asked questions
-
1. What is the product warranty period?
This product is covered by a one-year warranty from the date of purchase, Defects not caused by misuse are eligible for free repair or replacement parts.
-
2. How do I install the product?
Before installation, refer to the installation guide supplied with the product, Follow the steps in the guide.Contact after-sales support for an installation video if needed.
-
3. Does the product support updates?
Yes, the product supports firmware updates.Download the latest version from the official website, Follow the update instructions.
-
4. How can I obtain after-sales support?
You can use the official website“Contact Us”page to submit a support ticket, or call the after-sales hotline for assistance.
-
5. What are the operating environment requirements?
Recommended operating temperature-10°C~50°C, Humidity20%-80%relative humidity, Avoid high-temperature, high-humidity and highly corrosive environments.
