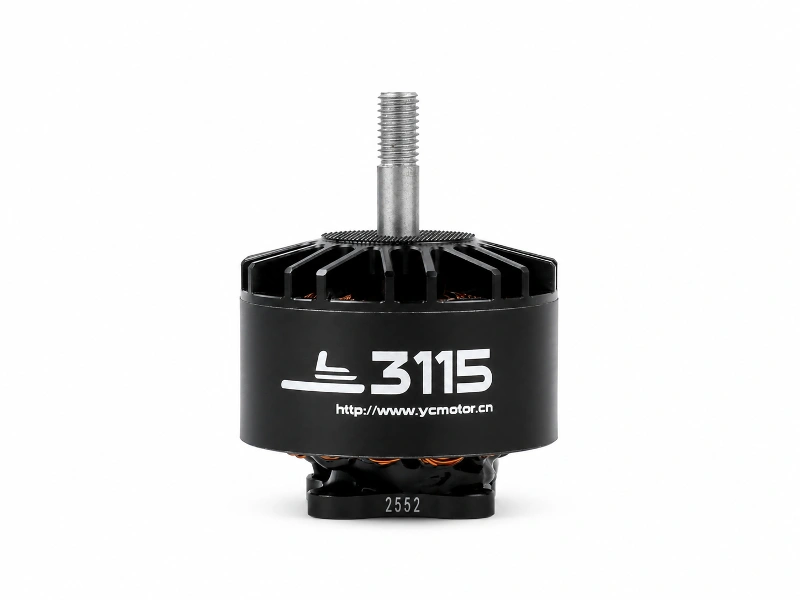

L3115

Recommended battery: 4-6S LiPo
Rated thrust: 1.2-1.6kg
Maximum thrust: 4070g

L3115详情---en_02

L3115详情---en_04

L3115详情---en_05

Engineering drawing

xq1

Recommended components		Takeoff weight reference
Recommended battery	4-6S LiPo	Recommended thrust per axis	1.2-1.6kg
MotorKV	L3115 KV900	Maximum quadcopter takeoff weight	4.8-6.4kg
Recommended ESC	6S65A-4in1	Maximum hexacopter/X8 takeoff weight	7.2-9.6kg
Recommended propeller	FNY0950inchThree-blade propeller / FNY1045inchThree-blade propeller	Maximum octocopter takeoff weight	9.6-12.8kg

Motor technical specifications
Motor parameters	Motor model	L3115
	KVRating	KV900
	Slot/pole count	12N14P
	No-load current (10V)	1.7A
	Phase-to-phase resistance (Range)	26-34mΩ
	Voltage range (Range)	16-24V
	Maximum current (24V)	63A
	Maximum thrust (24V)	4070g
	Maximum power (24V)	1523W
	Wire gauge, Wire color, Wire length	18#, Black, Wire length250mm
	Rotor dynamic balance	≤10mg
	Ingress protection rating	IPX6
	Motor weight including leads	122g
	Operating ambient temperature	-30℃–55℃

xq2

Motor L3115 KV900 + Propeller FNY0950inchThree-blade propeller + ESC BLDC

Operating voltage (V)	Throttle setting (%)	Current (A)	Torque (N·m)	Input power (W)	Output power (W)	Speed (RPM)	Thrust (gf)	Thrust efficiency (g/W)
24	30	3.24	0.07	77	43	5555	437	5.64
	35	4.46	0.10	107	68	6346	600	5.63
	40	6.35	0.14	152	103	7206	802	5.29
	45	9.03	0.17	215	141	8087	1018	4.73
	50	11.84	0.20	282	189	8868	1228	4.35
	55	15.72	0.25	374	248	9638	1498	4.00
	60	18.73	0.29	445	311	10373	1718	3.86
	65	22.75	0.31	540	363	11085	1970	3.65
	70	27.62	0.37	655	452	11718	2307	3.52
	75	34.61	0.43	820	558	12354	2577	3.14
	80	40.33	0.49	953	661	12986	2850	2.99
	85	47.83	0.52	1128	738	13557	3111	2.76
	90	53.80	0.58	1267	849	14083	3382	2.67
	95	63.95	0.64	1503	977	14483	3657	2.43
	100	70.92	0.67	1664	1030	14791	3855	2.32

xq2

Motor L3115 KV900 + Propeller FNY1045inchThree-blade propeller + ESC BLDC

Operating voltage (V)	Throttle setting (%)	Current (A)	Torque (N·m)	Input power (W)	Output power (W)	Speed (RPM)	Thrust (gf)	Thrust efficiency (g/W)
24	30	3.17	0.08	76	46	5723	444	5.86
	35	4.28	0.10	102	68	6470	599	5.86
	40	6.04	0.13	144	99	7312	805	5.58
	45	8.33	0.16	199	136	8192	1021	5.14
	50	10.89	0.19	260	177	9005	1270	4.89
	55	14.68	0.22	350	226	9804	1537	4.40
	60	17.33	0.26	412	291	10540	1807	4.38
	65	21.01	0.30	500	354	11252	2078	4.16
	70	25.73	0.34	611	421	11989	2360	3.86
	75	30.95	0.38	734	509	12695	2622	3.57
	80	37.41	0.41	885	569	13343	2958	3.34
	85	42.55	0.45	1005	661	13966	3235	3.22
	90	49.79	0.49	1174	745	14519	3545	3.02
	95	58.22	0.52	1370	815	15076	3767	2.75
	100	64.86	0.57	1523	924	15427	4071	2.67
