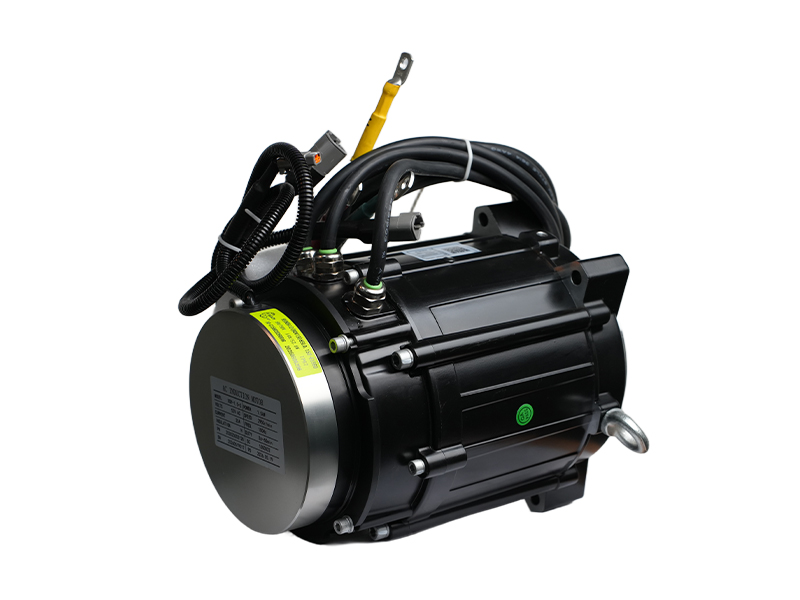

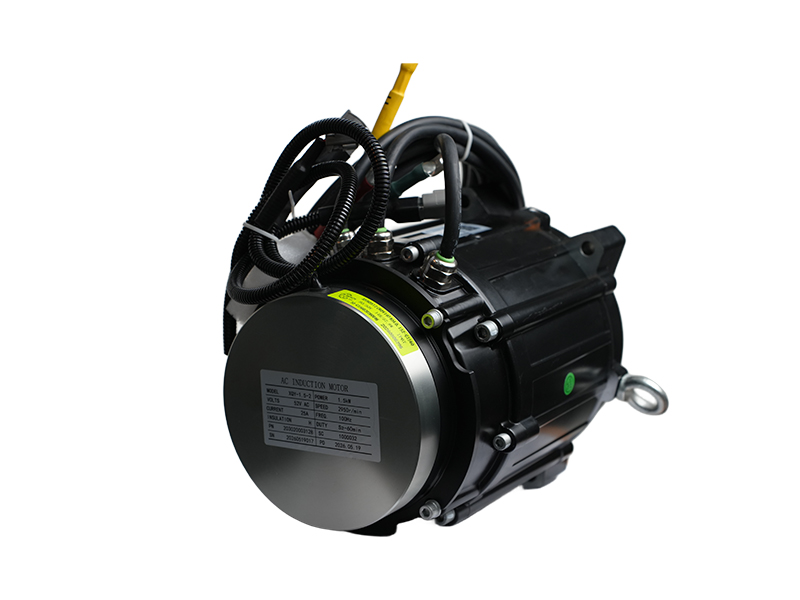

XQY-1.5-2

Product Introduction

Product specifications

Product model	Rated power	Rated voltage	Rated speed	Rated torque	Rated current	Maximum speed	Duty rating	Ingress protection rating	Customer connection interface	Functions and applications
XQY-1.5-2	1.5kW	52V AC	2950r/min	4.9N·m	25A	5000r/min	S2-60min	IP67	B5/13-tooth involute external spline	Telescopic boom lift Drive

Outline drawing

XQY-1.5-2Outline drawing_Page 001
