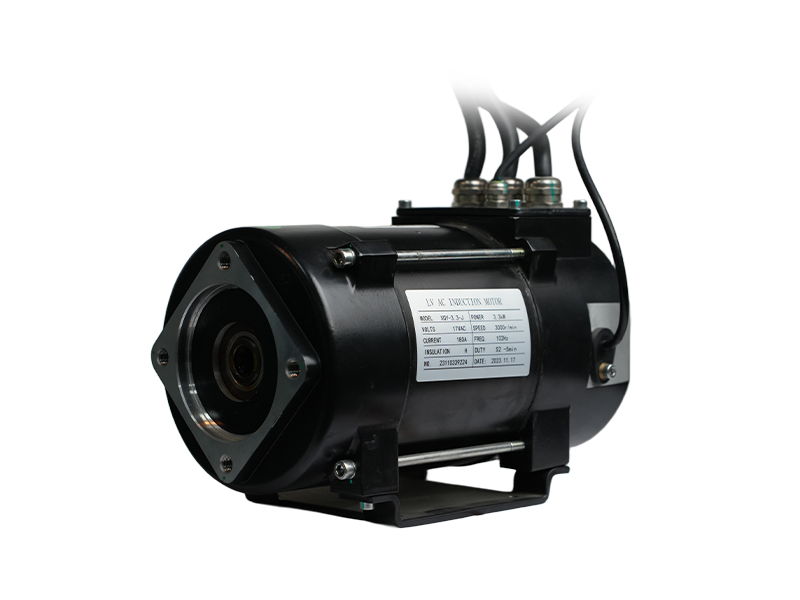

XQY-3.3-J
XQY-3.3-J
XQY-3.3-J
XQY-3.3-J

XQY-3.3-J

Contact Us
  • Product Introduction

Product specifications

Product model Rated power Rated voltage Rated speed Rated torque Rated current Maximum speed Duty rating Ingress protection rating Customer connection interface Functions and applications
XQY-3.3-J 3.3kW 17V AC 3000r/min 10.5N·m 160A 3500r/min S2-5min IP67 B34, 9-tooth involute internal spline Scissor lift platform Hydraulic pump

Outline drawing

XQY-3.3-JOutline drawing_Page 001
