- Product Introduction
DC motor
| Product model | Rated power | Rated voltage | Rated speed | Rated current | Excitation type | Separately excited field current | Duty rating | Maximum speed | Rotation direction | Ingress protection rating | Customer connection interface | Functions and applicable vehicles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

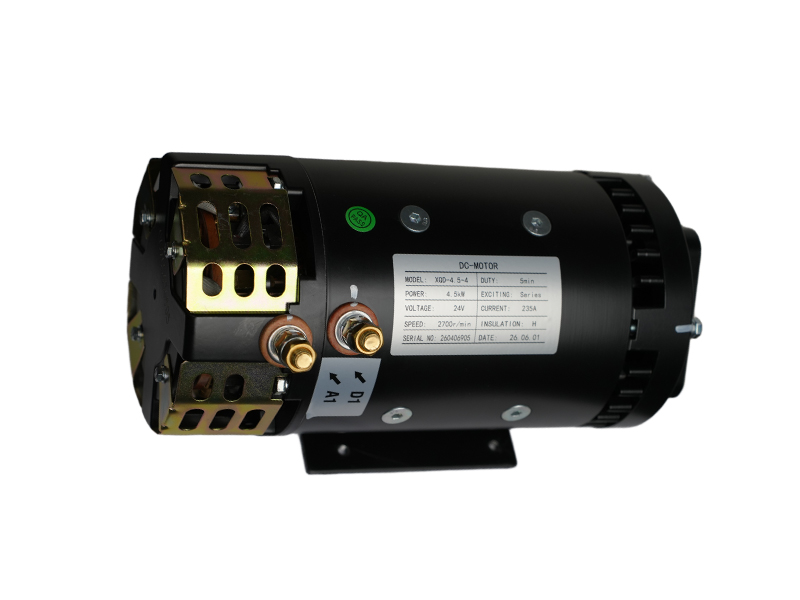

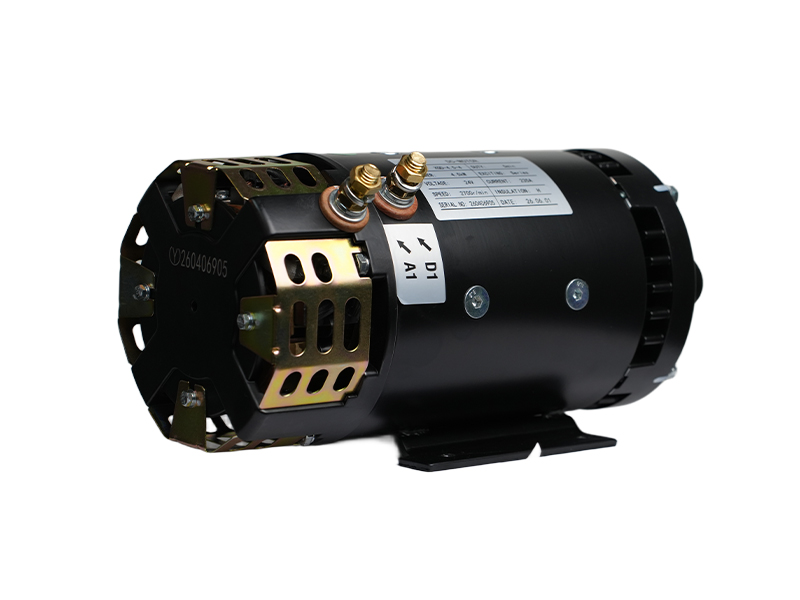

| XQD-4.5-4 | 4.5kW | 24V | 2700r/min | 235A | Series-wound | / | 5min | 3500r/min | Clockwise viewed from shaft end | IP20 | 9-tooth internal spline16/32 Bottom mounting holes4-1/4-π3/8 Pilot diameter82.55 |
Boom lift pump motor |
Outline drawing
